Building Services

World’s largest supplier of pumps and systems to transport, treat and control water and other fluids

Building Services

HVAC

Xylem offers a complete range of high efficiency pumps for heating, cooling and hot water systems, including state-of-the-art variable speed solutions.

ecocirc Series

  • High efficiency energy saving variable speed circulators suitable for stand alone and boiler OEM applications.
  • ErP ready to 2015 standards.
  • Capacities to 3,2 m3/h
  • Head to 6 m
  • Maximum pressure 10 bar
  • Temp -10°C to +110° C

ecocirc XL Series

  • High efficiency energy saving variable speed circulators.
  • ErP ready to 2015 standards.
  • Capacities to 70 m3/h
  • Head to 18 m
  • Communicate with Modbus, RTU and Bacnet systems
  • Temp -10° C to +110° C

ecocirc XL Stainless Steel Series

  • High efficiency energy saving variable speed circulators.
  • ErP ready to 2015 standards.
  • Capacities to 70 m3/h
  • Head to 18 m
  • Communicate with Modbus, RTU and Bacnet systems
  • Temp -10° C to +110° C

e-LNE Series

  • Single head in-line pumps
  • Capacities to 400 m3/h
  • Head to 100 metres
  • Powers to 37 kW
  • Temp -25° C to +140° C
  • Can be equipped with Hydrovar variable speed pump controller

e-LNT Series

  • Twin head in-line pumps
  • Capacities to 800 m3/h
  • Head to 100 metres
  • Powers to 37 kW
  • Temp -25° C to +140° C
  • Can be equipped with Hydrovar variable speed pump controller

SERIES 1510 Centrifugal Pumps

  • Bronze Fitted
  • End Suction, base Mounted Pump
  • True Back Pull Out Design (for easy mechanical seal maintenance)
  • Flow range 800 m3/hr
  • Head range 90 m
  • Working Pressure 12 bar
  • Temp 107˚C
  • Working Pressure (Optional Stuffing Box) 17 bar

SERIES HSC3

  • Bronze Fitted
  • Double Suction, base mounted pump
  • Internally self flushing mechanical seals
  • Flow range 1400 m3/hr
  • Head range 90 m
  • Powers to 200 kW
  • Working Pressure 12 bar
  • Temp -29˚ to 107˚C
  • Easy bearing & mechanical seals replacement

SERIES VSX

  • Bronze Fitted
  • Double Suction, base mounted pump
  • Internally self flushing mechanical seals
  • Flow range 5227 m3/hr
  • Head range 111 m
  • Powers to 1103 kW
  • Working Pressure 21 bar

SERIES e-80SC

  • Stainless Steel Fitted
  • Split-coupled, In-line
  • Shaft Jacking Coupling
  • Flow Range up to 1646 m3/hr
  • Head Range up to 44 Meters
  • Working Pressure 12 bar & 17 bar
  • Power to 0.74 kW to 149 kW
  • Temp -29˚ to 121˚C

Water Supply

Xylem offers Wedeco UV disinfection systems and a wide range of Lowara multistage pumps and prefabricated, ready to operate booster sets with or without variable speed control to meet your highest expectations for water quality, life cycle cost and efficient operation.

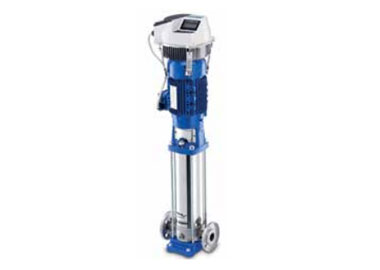

esv Series

  • Stainless steel vertical multistage pumps
  • Capacities up to 160 m3/h
  • Head up to 330 m
  • Power up to 55 kW
  • Can be equipped with Hydrovar variable speed pump controller

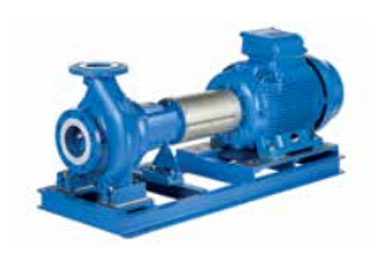

e-NSC Series

  • Cast iron end suction pumps according to EN 733
  • Capacities up to 1,800 m3/h
  • Head up to 160 m
  • Power up to 315 kW
  • Can be equipped with Hydrovar variable speed pump controller

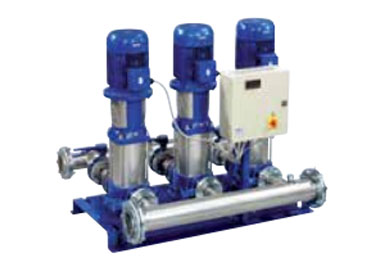

GS Series

  • Fixed speed booster sets with 2-3 pumps
  • Capacities up to 630 m3/h
  • Head up to 160 m
  • Power up to 55 kW/ pump
  • Communicate via Modbus

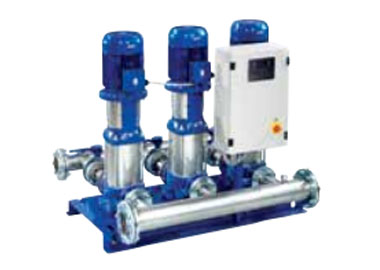

GV Series

  • Variable speed booster sets with a variable speed drive and controller built in the control panel. For 2-6 pumps.
  • Capacities up to 750 m3/h
  • Head up to 160 m
  • Power up to 37 kW/ pump
  • Communicate via Modbus or internet

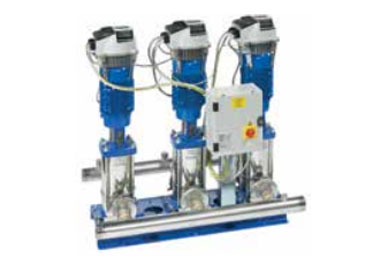

GHV Series

  • Fully flexible variable speed booster sets where all pumps are speed controlled with individual Hydrovars. for 2-4 pumps
  • Capacities up to 640 m3/h
  • Head up to 160 m
  • Power up to 22 kW/ pump
  • Communicate via Modbus

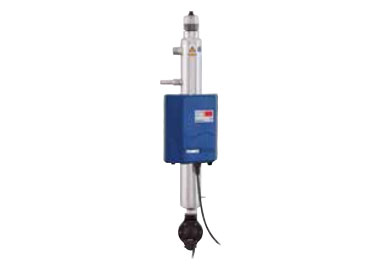

AQUADA Series

  • The benefits of Ultraviolet Disinfection, enhances overall water safety, no harmful chemicals or by-products, no affect on taste and water quality, simple to install with low maintenance and economical.
  • Capacities up to 28 m3/h

Waste Water

Flygt products live up to the toughest demands in the market, and now can deliver new benefits to commercial buildings. Flygt non-clogging wastewater products are built to be efficient for decades in removing dirty water containing solids.

The range covers pumps with hydraulic technology optimized for the duty points, pumping station designs and monitoring/ control equipment.

D 3000 Series

  • Submersible pumps with vortex impellers for high head/ low flow duties
  • Capacities up to 47 l/s
  • Head up to 28 m
  • Power up to 7,4 kW

N 3000 Series

  • Submersible pumps with self cleaning impellers for long time efficient, non clogging wastewater pumping
  • Capacities up to 600 l/s
  • Head up to 100 m
  • Power up to 105 kW

6020 Concertor Series

  • Wastewater clog-free pumping system with integrated intelligence
  • Capacities up to 130 l/s
  • Head up to 50 m
  • Power up to 7,3 kW

N&C 3001 Series

  • Large submersible pumps with closed channel impellers for very high flow
  • Capacities up to 3.300 l/s
  • Head up to 100 m
  • Power up to 560 kW

Dry installed pumps

  • All Flygt wastewater pumps comes in versions for dry pit installation.

Top station concept

  • A self cleaning pumping station design that prevent clogging and odeurs. The TOP station is available in prefabricated GRP or PE as well as on site built concrete stations.

DOC SERIES cellar drainage pumps

50Hz 60Hz
Capacity up to 14 m3/h 13,2 m3/h
Head up to 11 m 11 m
Power up to 0,55 kW 0,55 kW
Solids up to 20 mm 20 mm

DOMO SERIES wastewater/ sewage pumps

50Hz 60Hz
Capacity up to 40 m3/h 40 m3/h
Head up to 14,5 m 14,5 m
Power up to 1,5 kW 1,5 kW
Solids up to 50 mm 50 mm

DIWA SERIES drainage pumps

50Hz 60Hz
Capacity up to 25 m3/h 25 m3/h
Head up to 21 m 20 m
Power up to 1,5 kW 1,5 kW
Solids up to 8 mm 8 mm

DL SERIES wastewater/ sewage pumps

50Hz 60Hz
Capacity up to 42 m3/h 42 m3/h
Head up to 29.1 m 22 m
Power up to 1,5 kW 1,5 kW
Solids up to 50 mm 50 mm

DOMO GRI SERIES sewage pumps with grinder device

50Hz 60Hz
Capacity up to 6.6 m3/h 6.6 m3/h
Head up to 25 m 29 m
Power up to 1,1 kW 1,1 kW

DN SERIES drainage pumps

50Hz 60Hz
Capacity up to 16.8 m3/h 18 m3/h
Head up to 22 m 21 m
Power up to 0.75 kW 0.8 kW
Solids up to 5 mm 5 mm

GLS-GLV SERIES wastewater/sewage pumps

  • wastewater/sewage pumps in cast iron with selfcleaning channel or vortex impeller
50Hz
Capacity up to 244 m3/h
Head up to 41 m
Power up to 7.4 kW
Solids up to 100 mm
Motors 2-4 poles
Temp up to +40°C

1300 SERIES wastewater/sewage pumps

  • Wastewater / sewage pumps in cast iron with non-clog or vortex impeller
50Hz
Capacity up to 414 m3/h
Head up to 63 m
Power up to 18 kW
Temp up to +40°C

BOX SERIES prefabricated lifting stations

  • Minibox
  • Midibox
  • Singlebox Plus
  • Doublebox Plus
  • Maxibox Plus
Volume up to 1900 liters
Pumps 1 or 2

SOS FLOODKIT For flooded basements and garages

  • Pump type DOC 3 with 10 metres cable
  • Can be used in or outside the box.

Fire Fighting

The Lowara fire fighting booster sets GEM series is available with the use of either an electric motor or a diesel engine, depending on the type of water supply needed and the level of reliability required from the system. The booster sets are manufactured using either castiron or stainless steel centrifugal end suction pumps, ensuring all fire system application requirements can be met. The modular design of the booster not only keeps installation easy and simple, but also enables each fire set module to be tailored to meet the fire systems specific requirements.

Electric or diesel engine motors can be selected with each module which helps the end user to obtain the correct configuration, ensuring the highest levels of safety and reliability.

A range of accessories are also available, such as a flow meters, reduction suction tapers and alarm panels. The booster sets also feature either an automatic self-test or automatic shut off feature which allows maintenance of the system to be performed without the need to shut down the system fully.

GEM…J Single electric service pump module, with jockey pump on board

  • Flow: up to 766 m3/h
  • Head: up to 146 m
  • Maximum power output: Electric service pump 200 kW
  • Horizontal electric service pump: NSCC series
  • Vertical jockey pump: 1SV series version T or 1VM Series
  • Maximum operating pressure: 16 bar

GEM Single electric service pump module

  • Flow: up to 766 m3/h
  • Head: up to 146 m
  • Maximum power output: Electric service pump 200 kW
  • Horizontal electric service pump: NSCC series
  • Maximum operating pressure: 16 bar

GEMK...Single diesel engine service pump module

  • Flow: up to 766 m3/h
  • Head: up to 146 m
  • Maximum power: Diesel engine service pump 200 kW
  • Horizontal diesel engine service pump: NSCC series
  • Maximum operating pressure: 16 bar
