Dewatering and Drainage

World’s largest supplier of pumps and systems to transport, treat and control water and other fluids

Dewatering and Drainage

Waste Water

Flygt products live up to the toughest demands in the market, and now can deliver new benefits to commercial buildings. Flygt non-clogging wastewater products are built to be efficient for decades in removing dirty water containing solids.

The range covers pumps with hydraulic technology optimized for the duty points, pumping station designs and monitoring/ control equipment.

D 3000 Series

  • Submersible pumps with vortex impellers for high head/ low flow duties
  • Capacities up to 47 l/s
  • Head up to 28 m
  • Power up to 7,4 kW

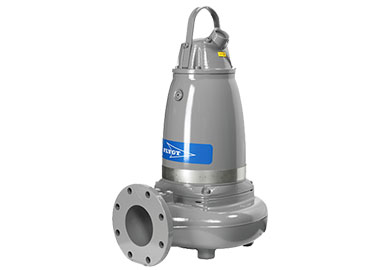

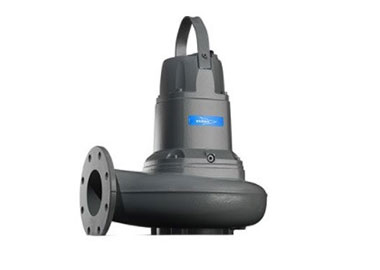

N 3000 Series

  • Submersible pumps with self cleaning impellers for long time efficient, non clogging wastewater pumping
  • Capacities up to 600 l/s
  • Head up to 100 m
  • Power up to 105 kW

6020 Concertor Series

  • Wastewater clog-free pumping system with integrated intelligence
  • Capacities up to 130 l/s
  • Head up to 50 m
  • Power up to 7,3 kW

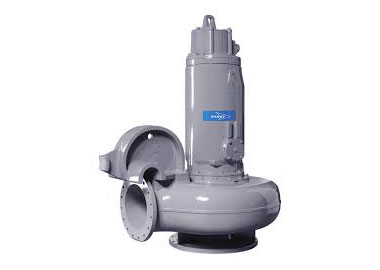

N&C 3001 Series

  • Large submersible pumps with closed channel impellers for very high flow
  • Capacities up to 3.300 l/s
  • Head up to 100 m
  • Power up to 560 kW

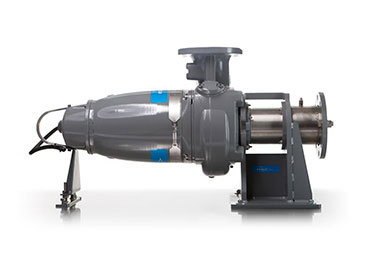

Dry installed pumps

  • All Flygt wastewater pumps comes in versions for dry pit installation.

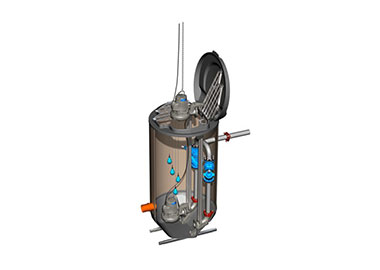

Top station concept

  • A self cleaning pumping station design that prevent clogging and odeurs. The TOP station is available in prefabricated GRP or PE as well as on site built concrete stations.

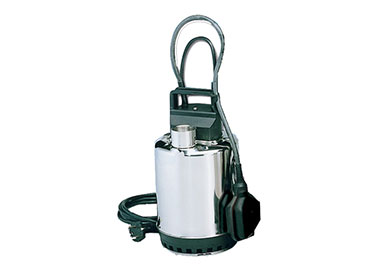

DOC SERIES cellar drainage pumps

50Hz 60Hz
Capacity up to 14 m3/h 13,2 m3/h
Head up to 11 m 11 m
Power up to 0,55 kW 0,55 kW
Solids up to 20 mm 20 mm

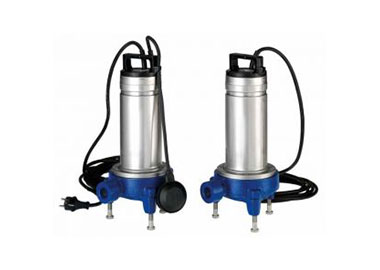

DOMO SERIES wastewater/ sewage pumps

50Hz 60Hz
Capacity up to 40 m3/h 40 m3/h
Head up to 14,5 m 14,5 m
Power up to 1,5 kW 1,5 kW
Solids up to 50 mm 50 mm

DIWA SERIES drainage pumps

50Hz 60Hz
Capacity up to 25 m3/h 25 m3/h
Head up to 21 m 20 m
Power up to 1,5 kW 1,5 kW
Solids up to 8 mm 8 mm

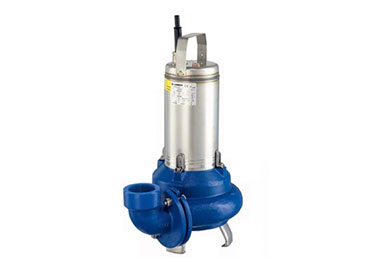

DL SERIES wastewater/ sewage pumps

50Hz 60Hz
Capacity up to 42 m3/h 42 m3/h
Head up to 29.1 m 22 m
Power up to 1,5 kW 1,5 kW
Solids up to 50 mm 50 mm

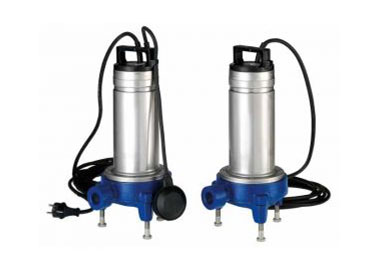

DOMO GRI SERIES sewage pumps with grinder device

50Hz 60Hz
Capacity up to 6.6 m3/h 6.6 m3/h
Head up to 25 m 29 m
Power up to 1,1 kW 1,1 kW

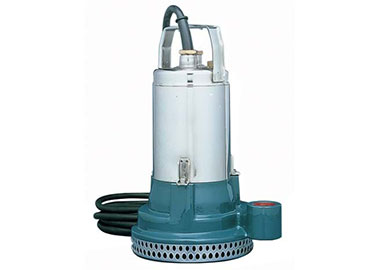

DN SERIES drainage pumps

50Hz 60Hz
Capacity up to 16.8 m3/h 18 m3/h
Head up to 22 m 21 m
Power up to 0.75 kW 0.8 kW
Solids up to 5 mm 5 mm

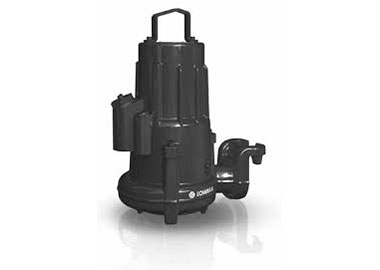

GLS-GLV SERIES wastewater/sewage pumps

  • wastewater/sewage pumps in cast iron with selfcleaning channel or vortex impeller
50Hz
Capacity up to 244 m3/h
Head up to 41 m
Power up to 7.4 kW
Solids up to 100 mm
Motors 2-4 poles
Temp up to +40°C

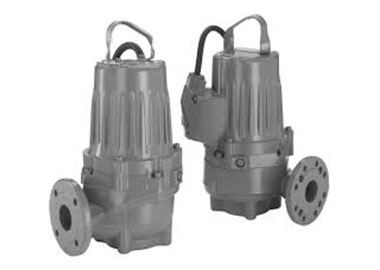

1300 SERIES wastewater/sewage pumps

  • Wastewater / sewage pumps in cast iron with non-clog or vortex impeller
50Hz
Capacity up to 414 m3/h
Head up to 63 m
Power up to 18 kW
Temp up to +40°C

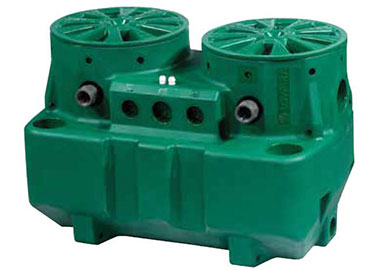

BOX SERIES prefabricated lifting stations

  • Minibox
  • Midibox
  • Singlebox Plus
  • Doublebox Plus
  • Maxibox Plus
Volume up to 1900 liters
Pumps 1 or 2

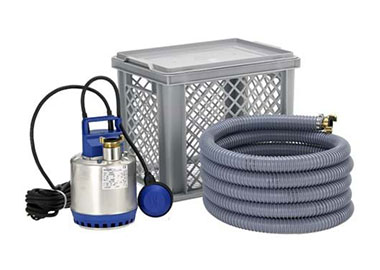

SOS FLOODKIT For flooded basements and garages

  • Pump type DOC 3 with 10 metres cable
  • Can be used in or outside the box.
