HVAC

World’s largest supplier of pumps and systems to transport, treat and control water and other fluids

HVAC

HVAC

Xylem offers a complete range of high efficiency pumps for heating, cooling and hot water systems, including state-of-the-art variable speed solutions.

ecocirc Series

  • High efficiency energy saving variable speed circulators suitable for stand alone and boiler OEM applications.
  • ErP ready to 2015 standards.
  • Capacities to 3,2 m3/h
  • Head to 6 m
  • Maximum pressure 10 bar
  • Temp -10°C to +110° C

ecocirc XL Series

  • High efficiency energy saving variable speed circulators.
  • ErP ready to 2015 standards.
  • Capacities to 70 m3/h
  • Head to 18 m
  • Communicate with Modbus, RTU and Bacnet systems
  • Temp -10° C to +110° C

ecocirc XL Stainless Steel Series

  • High efficiency energy saving variable speed circulators.
  • ErP ready to 2015 standards.
  • Capacities to 70 m3/h
  • Head to 18 m
  • Communicate with Modbus, RTU and Bacnet systems
  • Temp -10° C to +110° C

e-LNE Series

  • Single head in-line pumps
  • Capacities to 400 m3/h
  • Head to 100 metres
  • Powers to 37 kW
  • Temp -25° C to +140° C
  • Can be equipped with Hydrovar variable speed pump controller

e-LNT Series

  • Twin head in-line pumps
  • Capacities to 800 m3/h
  • Head to 100 metres
  • Powers to 37 kW
  • Temp -25° C to +140° C
  • Can be equipped with Hydrovar variable speed pump controller

SERIES 1510 Centrifugal Pumps

  • Bronze Fitted
  • End Suction, base Mounted Pump
  • True Back Pull Out Design (for easy mechanical seal maintenance)
  • Flow range 800 m3/hr
  • Head range 90 m
  • Working Pressure 12 bar
  • Temp 107˚C
  • Working Pressure (Optional Stuffing Box) 17 bar

SERIES HSC3

  • Bronze Fitted
  • Double Suction, base mounted pump
  • Internally self flushing mechanical seals
  • Flow range 1400 m3/hr
  • Head range 90 m
  • Powers to 200 kW
  • Working Pressure 12 bar
  • Temp -29˚ to 107˚C
  • Easy bearing & mechanical seals replacement

SERIES VSX

  • Bronze Fitted
  • Double Suction, base mounted pump
  • Internally self flushing mechanical seals
  • Flow range 5227 m3/hr
  • Head range 111 m
  • Powers to 1103 kW
  • Working Pressure 21 bar

SERIES e-80SC

  • Stainless Steel Fitted
  • Split-coupled, In-line
  • Shaft Jacking Coupling
  • Flow Range up to 1646 m3/hr
  • Head Range up to 44 Meters
  • Working Pressure 12 bar & 17 bar
  • Power to 0.74 kW to 149 kW
  • Temp -29˚ to 121˚C

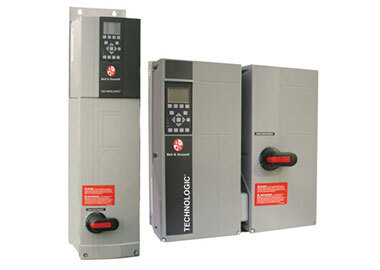

Technologic IPC Variable Speed Controller

  • Quick set-up Genie for fast system configuration Capacities
  • Continuous scrolling menu to ensure no parameters are left out during programming
  • Pump and system protection parameters designed specifically around hydronic systems
  • Service and support from pump and system experts
  • Communicate directly with BMS over Modbus, BACNet or N2 Metasys FLN
  • Alarm Log key for quick access to last 5 alarms and maintenance events
  • Hand on, Auto on, and Off buttons for easy pump operation at the keypad – No toggling between local and remote operation
  • Duplex, alternation, and speed synchronization pumping control with auto lead/lag and alternate
  • Constant speed lag control. Able to control 1 variable speed pump with up to 2 fixed speed lag pumps triggered by relays
  • USB Connectivity supports remote diagnostics through PC software
  • Dual DC-link reactors standard reduces harmonics to the level of a 5% AC line reactor without the voltage drop across the full load range
  • EMC/RFI filters designed to reduce drive noise emissions and interference to strict standards
  • Automatic Energy Optimization – Regulates output voltage to improve system efficiency as loads change
  • By Pass panel option for across-the-line motor operation
  • Built-in Pump Protection for end of curve, flow compensation and no/low flow
