Chillers & Cooling

World’s largest supplier of pumps and systems to transport, treat and control water and other fluids

Chillers & Cooling

esv™ SERIES vertical multistage pumps

  • The range of pumps features 11 models and can be specially configured for a wide range of applications
50Hz 60Hz
Capacity up to 160 m3/h 160 m3/h
Head up to 330 m 330 m
Power up to 55 kW 55 kW
Temp 30°C to +120°C (high temp versions up to 180°C) 30°C to +120°C (high temp versions up to 180°C)

ehm™ SERIES horizontal multistage pump

50Hz 60Hz
Capacity up to 29 m3/h 29 m3/h
Head up to 160 m 160 m
Power up to 5,5 kW 5,5 kW

ecocirc Series

  • High efficiency energy saving variable speed circulators suitable for stand alone and boiler OEM applications.
  • ErP ready to 2015 standards.
  • Capacities to 3,2 m3/h
  • Head to 6 m
  • Maximum pressure 10 bar
  • Temp -10°C to +110° C

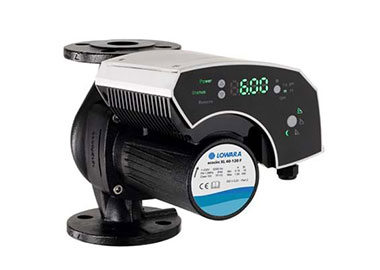

ecocirc XL Series

  • High efficiency energy saving variable speed circulators.
  • ErP ready to 2015 standards.
  • Capacities to 70 m3/h
  • Head to 18 m
  • Communicate with Modbus, RTU and Bacnet systems
  • Temp -10° C to +110° C

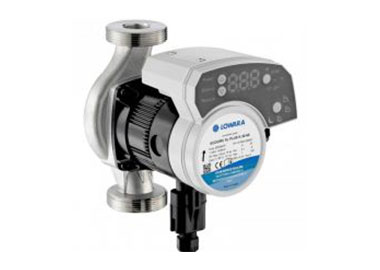

ecocirc XL Stainless Steel Series

  • High efficiency energy saving variable speed circulators.
  • ErP ready to 2015 standards.
  • Capacities to 70 m3/h
  • Head to 18 m
  • Communicate with Modbus, RTU and Bacnet systems
  • Temp -10° C to +110° C

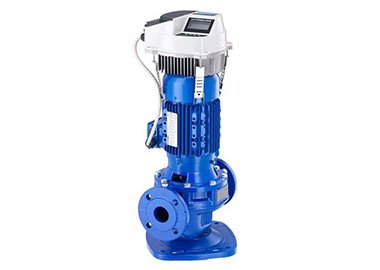

e-LNE Series

  • Single head in-line pumps
  • Capacities to 400 m3/h
  • Head to 100 metres
  • Powers to 37 kW
  • Temp -25° C to +140° C
  • Can be equipped with Hydrovar variable speed pump controller

e-LNT Series

  • Twin head in-line pumps
  • Capacities to 800 m3/h
  • Head to 100 metres
  • Powers to 37 kW
  • Temp -25° C to +140° C
  • Can be equipped with Hydrovar variable speed pump controller

eshe-SHS-SHF SERIES

  • Full stainless steel (AISI 316) pumps: extend shaft, stub shaft and frame mounted
50Hz
Capacity up to 240 m3/h
Head up to 110 m
Power up to 37 kW (extended shaft version up to 22 kW)
Temp -30°C to +120°C

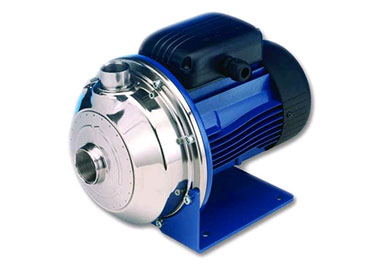

CEA-CEAN SERIES

  • closed impeller pumps (AISI 316)
50Hz 60Hz
Capacity up to 31 m3/h 32 m3/h
Head up to 62 m 46 m
Power up to 3 kW 3 kW

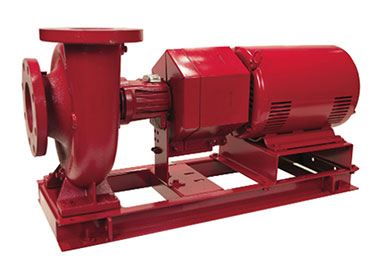

SERIES 1510 Centrifugal Pumps

  • Bronze Fitted
  • End Suction, base Mounted Pump
  • True Back Pull Out Design (for easy mechanical seal maintenance)
  • Flow range 800 m3/hr
  • Head range 90 m
  • Working Pressure 12 bar
  • Temp 107˚C
  • Working Pressure (Optional Stuffing Box) 17 bar

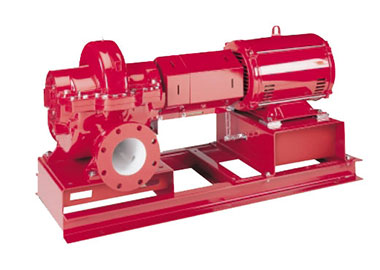

SERIES HSC3

  • Bronze Fitted
  • Double Suction, base mounted pump
  • Internally self flushing mechanical seals
  • Flow range 1400 m3/hr
  • Head range 90 m
  • Powers to 200 kW
  • Working Pressure 12 bar
  • Temp -29˚ to 107˚C
  • Easy bearing & mechanical seals replacement

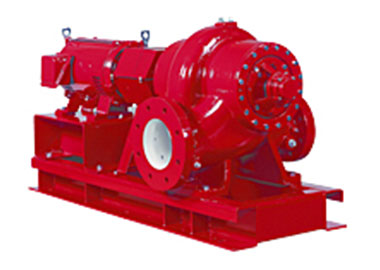

SERIES VSX

  • Bronze Fitted
  • Double Suction, base mounted pump
  • Internally self flushing mechanical seals
  • Flow range 5227 m3/hr
  • Head range 111 m
  • Powers to 1103 kW
  • Working Pressure 21 bar

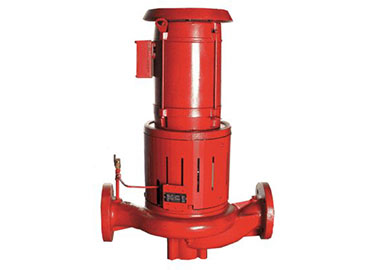

SERIES e-80SC

  • Stainless Steel Fitted
  • Split-coupled, In-line
  • Shaft Jacking Coupling
  • Flow Range up to 1646 m3/hr
  • Head Range up to 44 Meters
  • Working Pressure 12 bar & 17 bar
  • Power to 0.74 kW to 149 kW
  • Temp -29˚ to 121˚C

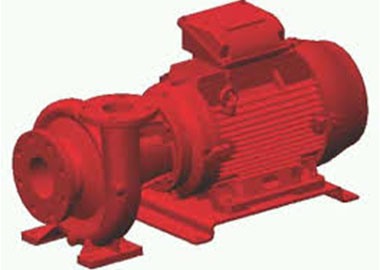

SERIES 1532 Pumps

  • Self Flushing Mechanical Seals ensure maximum seal face lubrication, heat dissipation, and debris removal without vulnerable, external flush tubing.
  • Back Pull out Design allows one service tech ease of maintenance.
  • Aluminium Bronze shaft sleeve construction is standard. Special sealing between the sleeve and shaft prevents corrosion of the shaft by pumped fluid.
  • Enclosed balance impeller for quite, vibration free performance. Impellers are precision fitted to the shaft and positively locked with a shaft key.
  • Heavy duty cast iron volute for 175 PSI Working Pressure.
  • Jacking Bolts provides ease of volute disassembly.
  • Gauge tappings on the suction and discharge flanges along with volute vent and drain tappings are standard.
  • Hydrostatic Testing of each pump is standard.
