Firefighting

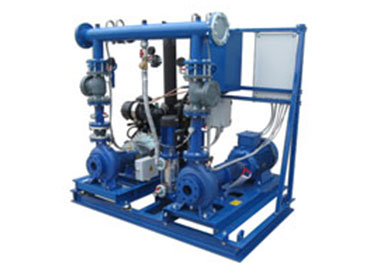

The Lowara fire fighting booster sets GEM series is available with the use of either an electric motor or a diesel engine, depending on the type of water supply needed and the level of reliability required from the system. The booster sets are manufactured using either castiron or stainless steel centrifugal end suction pumps, ensuring all fire system application requirements can be met. The modular design of the booster not only keeps installation easy and simple, but also enables each fire set module to be tailored to meet the fire systems specific requirements.

Electric or diesel engine motors can be selected with each module which helps the end user to obtain the correct configuration, ensuring the highest levels of safety and reliability.

A range of accessories are also available, such as a flow meters, reduction suction tapers and alarm panels. The booster sets also feature either an automatic self-test or automatic shut off feature which allows maintenance of the system to be performed without the need to shut down the system fully.

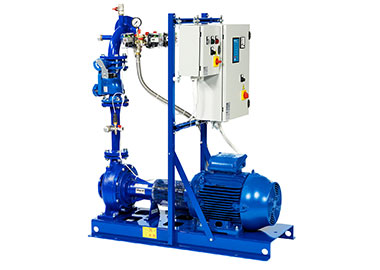

GEM…J Single electric service pump module, with jockey pump on board

  • Flow: up to 766 m3/h
  • Head: up to 146 m
  • Maximum power output: Electric service pump 200 kW
  • Horizontal electric service pump: NSCC series
  • Vertical jockey pump: 1SV series version T or 1VM Series
  • Maximum operating pressure: 16 bar

GEM Single electric service pump module

  • Flow: up to 766 m3/h
  • Head: up to 146 m
  • Maximum power output: Electric service pump 200 kW
  • Horizontal electric service pump: NSCC series
  • Maximum operating pressure: 16 bar

GEMK...Single diesel engine service pump module

  • Flow: up to 766 m3/h
  • Head: up to 146 m
  • Maximum power: Diesel engine service pump 200 kW
  • Horizontal diesel engine service pump: NSCC series
  • Maximum operating pressure: 16 bar
