General Industries and OEM

World’s largest supplier of pumps and systems to transport, treat and control water and other fluids

General Industries and OEM

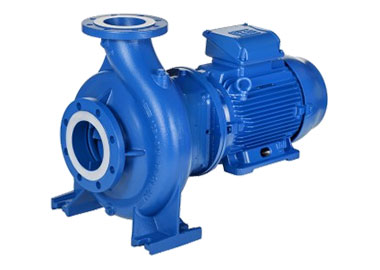

e-NSCE SERIES

  • e-NSCE SERIES Closed impeller pumps, extended shaft According to EN 733
50Hz
Capacity up to 130 m3/h
Head up to 100 m
Power up to 22 kW
Temp -25°C to +140°C

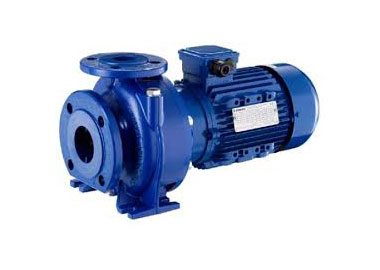

e-NSCS SERIES

  • e-NSCS SERIES Closed impeller pumps, stub shaft According to EN 733
50Hz
Capacity up to 1300 m3/h
Head up to 160 m
Power up to 90 kW
Temp -25°C to +140°C

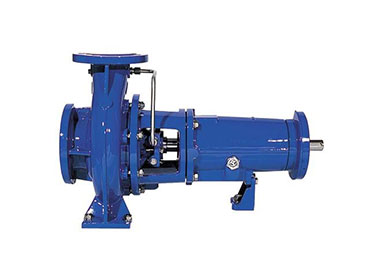

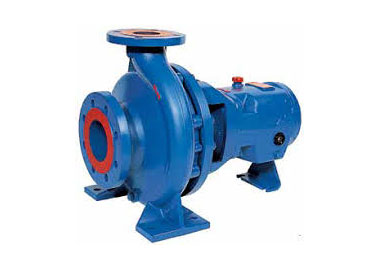

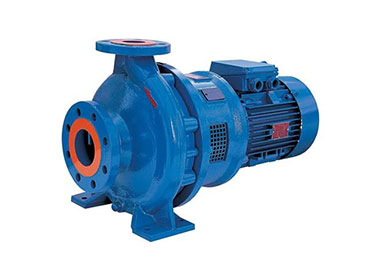

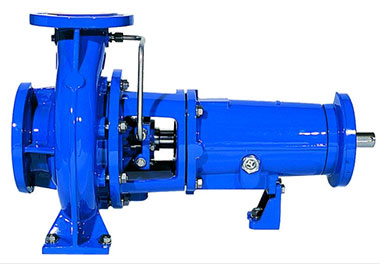

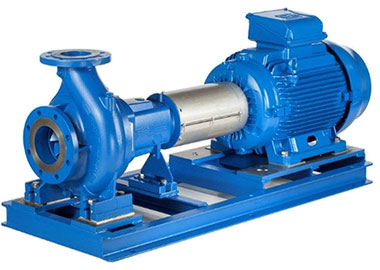

e-NSCF/C SERIES

  • e-NSCF/C SERIES Closed impeller pumps, frame mounted (elastic or spacer coupling)
50Hz
Capacity up to 1800 m3/h
Head up to 160 m
Power up to 315 kW
Temp -25°C to +140°C

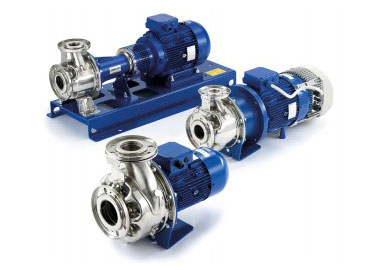

eshe-SHS-SHF SERIES

  • eshe-SHS-SHF SERIES Full stainless steel (AISI 316) pumps: extend shaft, stub shaft and frame mounted
50Hz
Capacity up to 240 m3/h
Head up to 110 m
Power up to 37 kW (extended shaft version up to 22 kW)
Temp -30°C to +140°C

SHO SERIES

  • SHO SERIES open impeller pumps (AISI 316)
50Hz
Capacity up to 53 m3/h
Head up to 50 m
Power up to 11 kW

CO SERIES

  • CO SERIES open impeller stainless steel pumps (AISI 316)
50Hz 60Hz
Capacity up to 54 m3/h 54 m3/h
Head up to 24 m 24 m
Power up to 3 kW 3 kW

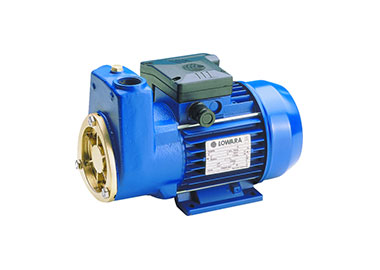

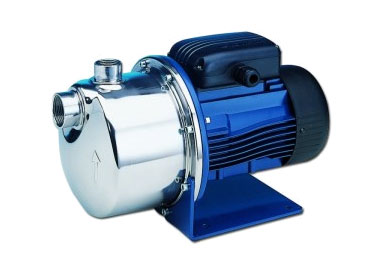

BG SERIES

  • self priming pumps
50Hz
Capacity up to 4.2 m3/h
Head up to 53 m
Suction head to 8 m
Power up to 1,1 kW

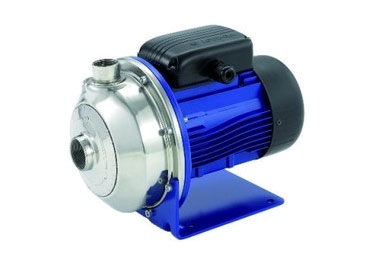

CEA-CEAN SERIES

  • CEA-CEAN SERIES closed impeller pumps (AISI 316)
50Hz 60Hz
Capacity up to 31 m3/h 32 m3/h
Head up to 62 m 46 m
Power up to 3 kW 3 kW

SP SERIES

  • self priming pumps
50Hz 60Hz
Capacity up to 2.75 m3/h 2.7 m3/h
Head up to 49 m 46 m
Suction head to 7 m 7 m
Power up to 0.75 kW 0.75 kW

LS SERIES

  • LS SERIES Closed impeller 16 bar pump
50Hz
Capacity up to 4600 m3/h
Head up to 100 m 46 m
Temperature 180°C
Size DN 150-600

LSN SERIES

  • LSN SERIES Closed impeller pumps frame mounted (elastic or spacer coupling)
50Hz
Capacity up to 450 m3/h
Head up to 150 m
Temperature 140 °C standard
Size DN 25-150

P-PSA-PK SERIES

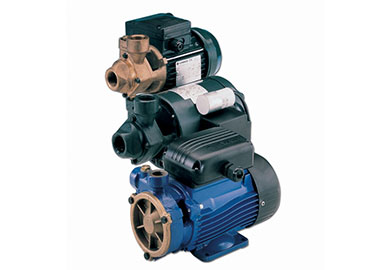

  • P-PSA-PK SERIES peripheral pumps
50Hz
Capacity up to 3.72 m3/h 3.9 m3/h
Head up to 82 m 83 m
Powers up to 1,1 kW 1,1 kW

BLOCK PRESSURE SETS

  • 50 Hz and 60 Hz
  • Pre-assembled sets for use with the Lowara range of end suction pumps

LSB SERIES

  • Single stage end suction pump in close coupled (block) design
50Hz
Capacity up to 450 3.9 m3/h
Head up to 150 m
Size DN 25-150

LC/LCP SERIES

  • LC/LCP SERIES Closed impeller 25 bar pumps frame mounted
50Hz
Capacity up to 4600 m3/h
Head up to 100 m
Temperature 180°C
Size DN 150-600

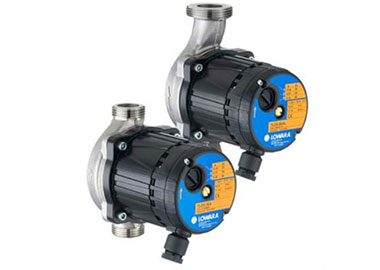

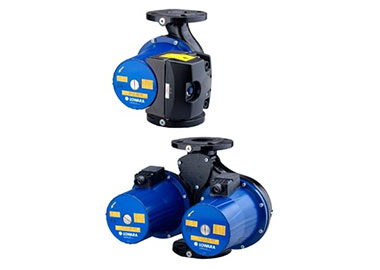

ecocirc SERIES

  • ecocirc SERIES XL and XLplus high efficiency wet rotor circulators
50Hz
Capacity up to 70 m3/h
Head up to 12 m
Maximum pressure 12 m
Temp 10°C to +110°C

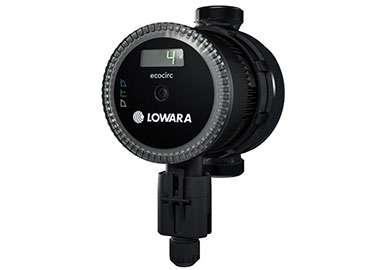

ecocirc PREMIUM SERIES

  • ecocirc PREMIUM SERIES high efficiency wet rotor circulators
50Hz
Capacity up to 3.2 m3/h
Head up to 6 m
Maximum pressure 10 bar
Temp -10°C to +110°C

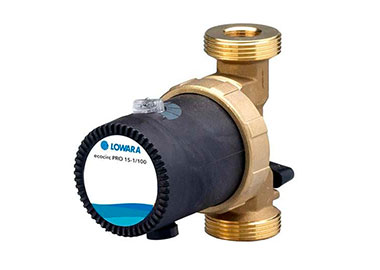

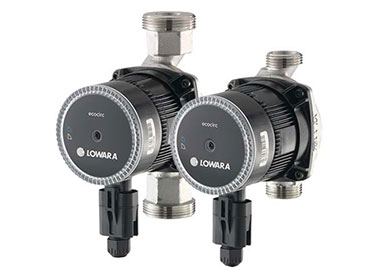

ecocirc PRO SERIES

  • ecocirc PRO SERIES wet rotor circulators for sanitary systems
50Hz
Capacity up to 1 m3/h
Head up to 3 m
Maximum pressure 10 bar
Temp +2°C to +65°C

TLC-TLCH* SERIES

  • TLC-TLCH* SERIES wet rotor circulators
50Hz
Capacity up to 12 m3/h
Head up to 12 m
Maximum pressure 10 bar
Temp -10°C to +110°C

ecocirc BASIC SERIES

  • ecocirc BASIC SERIES high efficiency wet rotor circulators
50Hz
Capacity up to 3.2 m3/h
Head up to 6 m
Maximum pressure 10 bar
Temp -10°C to +110°C

TLCN-TLCHN

  • TLCN-TLCHN Wet rotor circulators for sanitary systems
50Hz 60Hz
Capacity up to 12 m3 /h 12 m3 /h
Head up to 12 m 12 m
Maximum pressure 10 bar 10 bar
Temp +2°C to +110°C (recommended up to 65°C) +2°C to +110°C (recommended up to 65°C)

FLC–EFLC* SERIES

  • FLC–EFLC* SERIES wet rotor circulators
50Hz
Capacity up to 80 m3 /h
Head up to 20 m
Maximum pressure 10 bar
Temp -15°C to +120°C

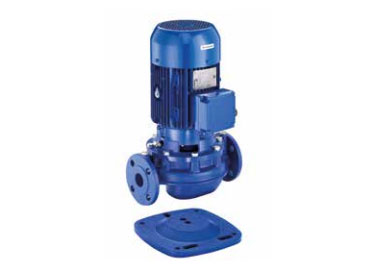

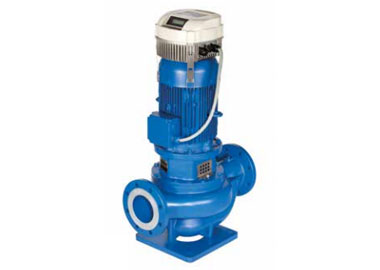

e-LNEE SERIES

  • e-LNEE SERIES Extended shaft
50Hz
Capacity up to 300 m3 /h
Head up to 100 m
Powers up to 22 kW
Temp -25°C to +140°C

e- LNES SERIES

  • e- LNES SERIES Stub shaft in-line pumps
50Hz
Capacity up to 400 m3 /h
Head up to 100 m
Powers up to 37 kW
Temp -25°C to +140°C

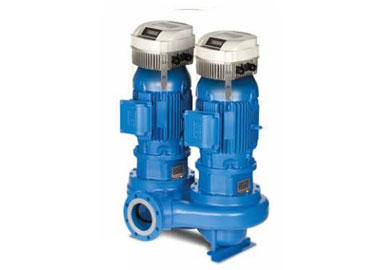

e-LNTE- LNTS SERIES

  • e-LNTE- LNTS SERIES Extended shaft and stub shaft in-line twin
50Hz
Capacity up to 800 m3 /h
Head up to 100 m
Powers up to 37 kW
Temp -25°C to +140°C

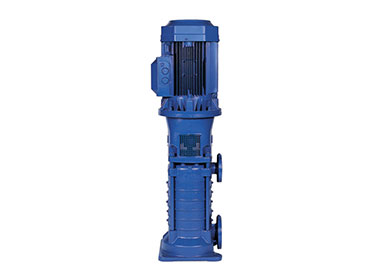

esv™ SERIES vertical multistage pumps

  • The range of pumps features 11 models and can be specially configured for a wide range of applications
50Hz 60Hz
Capacity up to 160 m3/h 160 m3/h
Head up to 330 m 330 m
Power up to 55 kW 55 kW
Temp 30°C to +120°C (high temp versions up to 180°C) 30°C to +120°C (high temp versions up to 180°C)

TDB-TDV SERIES vertical multi-stage pumps

50Hz
Capacity up to 360 m3/h
Head up to 500 m
Power up to 355 kW
Temp up to +140°C

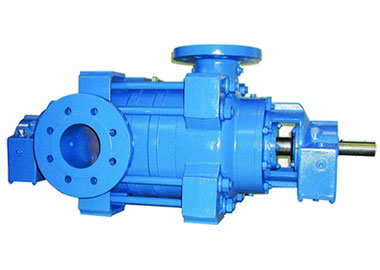

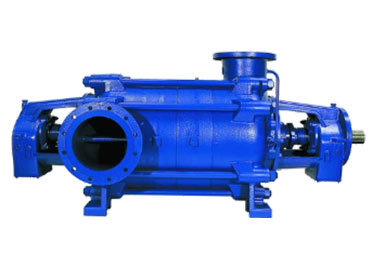

MP Horizontal multistage pump

  • MP Horizontal multistage pump with closed, radial type impellers and roller bearings on both ends
50Hz 60Hz
Capacity up to 340 m3/h 360 m3/h
Head up to 500 m 500 m
Temp 140°C 140°C
Size DN 40-125 DN 40-125

MPA Thrust bearing multistage pump

  • MPA Thrust bearing at drive side and medium lubricated slide bearing on suction side
50Hz 60Hz
Capacity up to 340 m3/h 360 m3/h
Head up to 500 m 500 m
Temp 140°C 140°C
Size DN 40-125 DN 40-125

MPB Vertical multistage pump

  • MPB Vertical multistage pump with closed, radial type impellers in close coupled (block) design
50Hz 60Hz
Capacity up to 200 m3/h 240 m3/h
Head up to 500 m 500 m
Temp 140°C 140°C
Size DN 40-125 DN 40-125

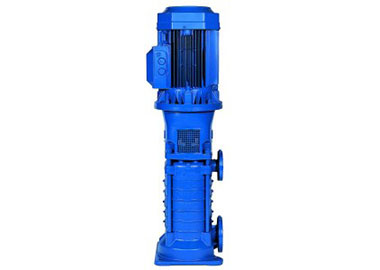

MPV Vertical multistage pump

50Hz 60Hz
Capacity up to 340 m3/h 360 m3/h
Head up to 500 m 500 m
Temp 140°C 140°C
Size DN 100-125 DN 40-125

SVI SERIES immersible vertical multistage pump

50Hz 60Hz
Capacity up to 160 m3/h 160 m3/h
Head up to 330 m 280 m
Power up to 55 kW 55 kW
Temp -10°C to +90°C -10°C to +90°C

ehm™ SERIES horizontal multistage pump

50Hz 60Hz
Capacity up to 29 m3/h 29 m3/h
Head up to 160 m 160 m
Power up to 5,5 kW 5,5 kW

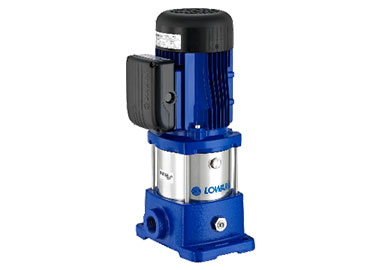

VM SERIES High efficiency closecoupled vertical multistage pump

  • VM SERIES High efficiency closecoupled vertical multistage pumps equipped with non-standard Lowara motors
50Hz 60Hz
Capacity up to 14 m3/h 17 m3/h
Head up to 98 m 106 m
Power up to 3 kW 4 kW
Max Temp to up to +90°C up to +90°C

MPE Horizontal multistage pump

  • MPE Horizontal multistage pump with bearings on both ends. Thrust balancing and seal pressure reduction by balancing drum.
50Hz 60Hz
Capacity up to 300 m3/h 320 m3/h
Head up to 850 m 850 m
Temp 140°C (optional up to 180°C) 140°C (optional up to 180°C)
Size DN 100-125 DN 100-125

P / MP 300 Horizontal multistage pump

  • P / MP 300 Horizontal multistage pump with bearings on both ends
50Hz 60Hz
Capacity up to 1800 m3/h 1200 m3/h
Head up to 300 m 300 m
Temp 140°C 140°C
Size DN 80-300 DN 80-250

PVa Vertical multistage pump

  • PVa Vertical multistage pump with closed, radial type impellers
50Hz 60Hz
Capacity up to 850 m3/h 1000 m3/h
Head up to 300 m 300 m
Temp 140°C 140°C
Size DN 80-200 DN 80-200

DOC SERIES cellar drainage pumps

50Hz 60Hz
Capacity up to 14 m3/h 13,2 m3/h
Head up to 11 m 11 m
Power up to 0,55 kW 0,55 kW
Solids up to 20 mm 20 mm

DOMO SERIES wastewater/ sewage pumps

50Hz 60Hz
Capacity up to 40 m3/h 40 m3/h
Head up to 14,5 m 14,5 m
Power up to 1,5 kW 1,5 kW
Solids up to 50 mm 50 mm

DIWA SERIES drainage pumps

50Hz 60Hz
Capacity up to 25 m3/h 25 m3/h
Head up to 21 m 20 m
Power up to 1,5 kW 1,5 kW
Solids up to 8 mm 8 mm

DL SERIES wastewater/ sewage pumps

50Hz 60Hz
Capacity up to 42 m3/h 42 m3/h
Head up to 29.1 m 22 m
Power up to 1,5 kW 1,5 kW
Solids up to 50 mm 50 mm

DOMO GRI SERIES sewage pumps with grinder device

50Hz 60Hz
Capacity up to 6.6 m3/h 6.6 m3/h
Head up to 25 m 29 m
Power up to 1,1 kW 1,1 kW

DN SERIES drainage pumps

50Hz 60Hz
Capacity up to 16.8 m3/h 18 m3/h
Head up to 22 m 21 m
Power up to 0.75 kW 0.8 kW
Solids up to 5 mm 5 mm

GLS-GLV SERIES wastewater/sewage pumps

  • wastewater/sewage pumps in cast iron with selfcleaning channel or vortex impeller
50Hz
Capacity up to 244 m3/h
Head up to 41 m
Power up to 7.4 kW
Solids up to 100 mm
Motors 2-4 poles
Temp up to +40°C

1300 SERIES wastewater/sewage pumps

  • Wastewater / sewage pumps in cast iron with non-clog or vortex impeller
50Hz
Capacity up to 414 m3/h
Head up to 63 m
Power up to 18 kW
Temp up to +40°C

BOX SERIES prefabricated lifting stations

  • Minibox
  • Midibox
  • Singlebox Plus
  • Doublebox Plus
  • Maxibox Plus
Volume up to 1900 liters
Pumps 1 or 2

SOS FLOODKIT For flooded basements and garages

  • Pump type DOC 3 with 10 metres cable
  • Can be used in or outside the box.

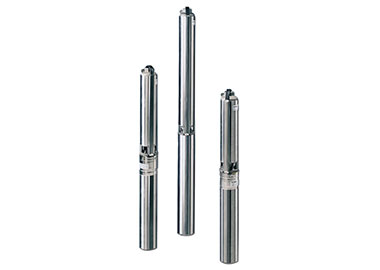

GS SERIES

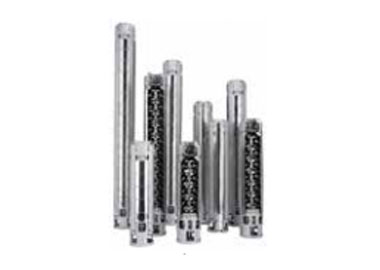

  • GS SERIES 4” borehole pumps
50Hz 60Hz
Capacity up to 21 m3/h 22 m3/h
Head up to 340 m 300 m
Power up to 7,5 kW 7,5 kW

GS SERIES

  • GS SERIES 4” borehole pumps
50Hz 60Hz
Capacity up to 21 m3/h 22 m3/h
Head up to 340 m 300 m
Power up to 7,5 kW 7,5 kW

Z6 SERIES

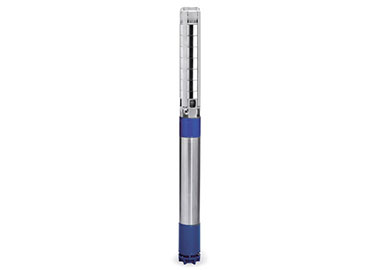

  • Z6 SERIES 6” borehole pumps
50Hz 60Hz
Capacity up to 78 m3/h 90 m3/h
Head up to 500 m 500 m
Power up to 350 kW 350 kW

L6W-L8WL10WL12W SERIES

  • L6W-L8WL10WL12W SERIES Rewindable motors
50Hz 60Hz
Power up to 300 kW 300 kW

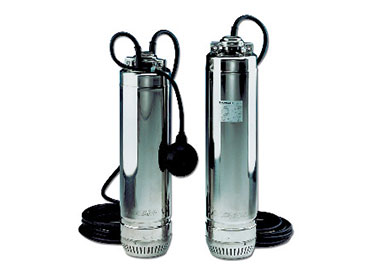

SCUBA SERIES

  • SCUBA SERIES 5” submersible pumps
50Hz 60Hz
Capacity up to 7,5 m3/h 7,5 m3/h
Head up to 80 m 75 m
Power up to 1,1 kW 1,1 kW

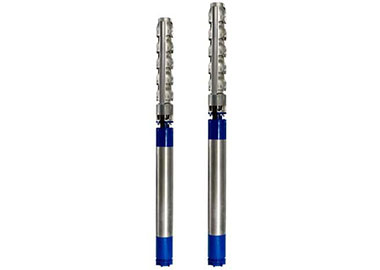

Z8-Z10-Z12 SERIES

  • Z8-Z10-Z12 SERIES 8”-10”-12” borehole pumps
50Hz 60Hz
Capacity up to 520 m3/h 480 m3/h
Head up to 500 m 500 m
Power up to 350 kW 350 kW

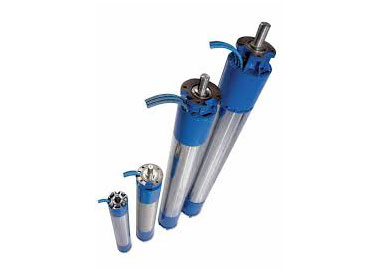

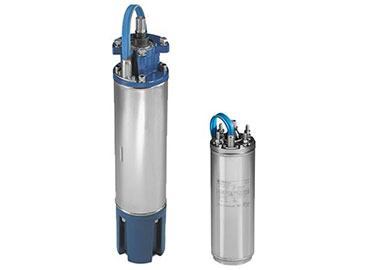

Water and oil filled SERIES

  • Water and oil filled 4” submersible motors series
50Hz 60Hz
Power up to 7,5 kW 7,5 kW

Cooling shrouds and pressure shrouds

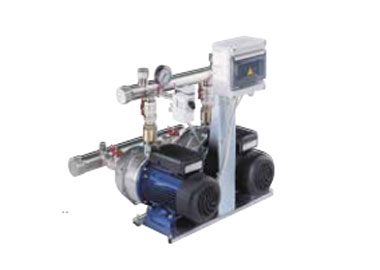

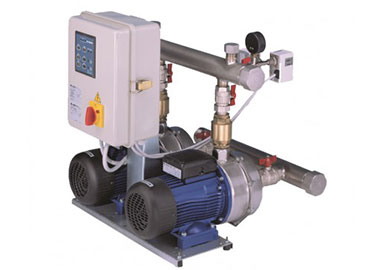

GXS SERIES SETS

  • Single-phase power supply, fixed speed and pressure switch control. For BG, CA, CEA, HM and SV series electric pumps.
50Hz
Flow rate up to 58 m3 /h
Power up to 2 x 1.5 kW

GTKS SERIES SETS

  • Single-phase power supply, variable speed and control by pressure transducers and Teknospeed electronic speed controllers integrated with the motor. For BG, CA, CEA, HM and SV series electric pumps.
50Hz
Flow rate up to 52 m3 /h
Power up to 2 x 1.1 kW

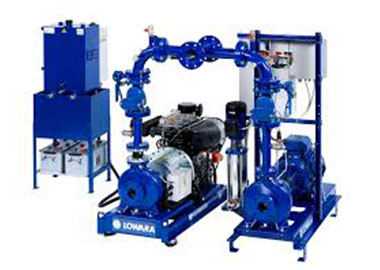

FIRE FIGHTING SYSTEMS EN 12845 GEM SERIES

  • Fire pump package manufactured in accordance to EN 12845. Max. power size for service pump 200 kW. Manifold in painted steel pipe with anchor bolts to fix to a wall or floor.

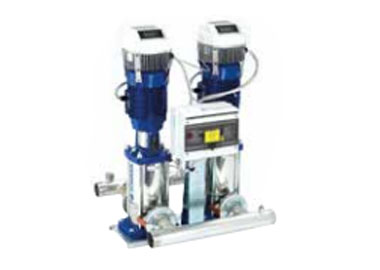

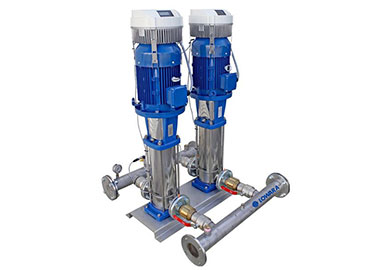

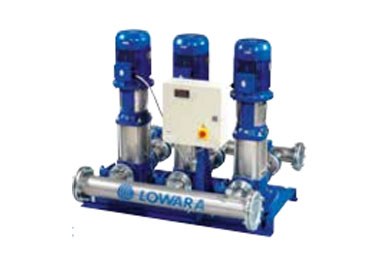

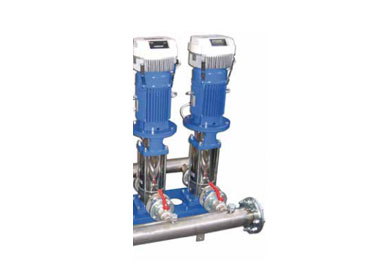

GV SERIES SETS

  • Variable speed booster sets up to four pumps eSV series.
50Hz
Flow rate up to 640 m3 /h
Head up to 160 m
Power up to 37 kW

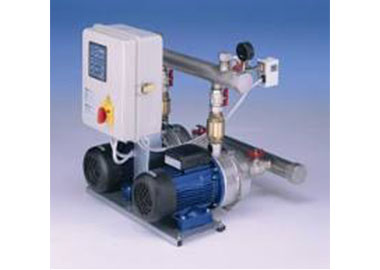

GMD SERIES SETS

  • Three-phase power supply, fixed speed and pressure switch control. For BG, CA, CEA, HM and SV series electric pumps.
50Hz
Flow rate up to 62 m3 /h
Power up to 2 x 4 kW

GHV SERIES SETS

  • Single-phase or threephase power supply, variable speed and control by pressure transducers and HYDROVAR™ electronic speed controllers mounted on the motor. For SV series electric pumps.
50Hz
Flow rate up to 640 m3 /h
Head up to 160 m
Power up to 22 kW

GS SERIES SETS

  • GS SERIES SETS Fixed speed booster sets, two and three pumps eS
50Hz
Flow rate up to 480 m3 /h
Head up to 160 m
Power up to 37 kW

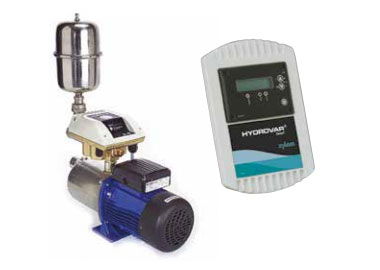

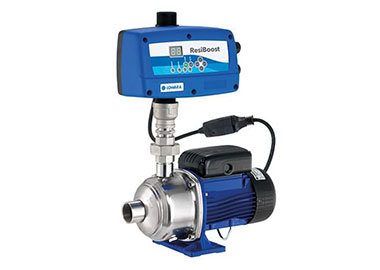

Series of Variable Speed Electric Pumps and Pressure Booster Units.

  • Delivery: up to 16m3/h
  • Head: up to 75m
  • Power supply: single-phase 50 and 60Hz
  • Power: from 0.3kW up to 1.1kW
  • Temperature of pumped liquid: to 80°C

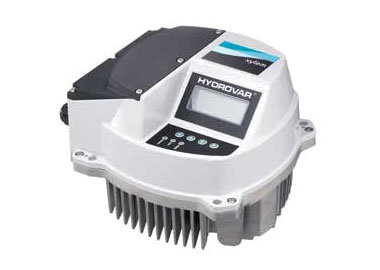

HYDROVAR™ the intelligent and user friendly speed controller for pumps!

  • Sizes available 1,1 - 22 kW
  • Extension up to 315 kW by using the external Hydrovar Smart controller
  • Shut down at zero demand
  • Easy to integrate into BMS systems - ModBus communication included as standard
  • Can be mounted directly on any standard IEC motors
  • Included 2 line LCD display

HYDROVAR™ booster sets

  • The HYDROVAR™ allows up to 8 units to be interfaced together which offers the user ultimate flexibility
  • The pumps have an automatic cyclic changeover facility and in the case of failure the remaining pump/s take up the duty.
  • The HYDROVAR™ utilises a 4 - 20A signal to regulate the motor speed in order to meet the system requirements

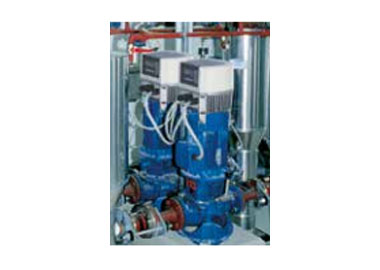

HYDROVAR™ Retro-fitting

  • The units are available in powers from 1.1–22 kW
  • The units can be mounted directly on to the pump motor (horizontal or vertical) or can be wall mounted
  • using the RS-485 database located on the main terminal board under the cover.

HYDROVAR™ Smart

  • Patented HYDROVAR™ Control System
  • Integrated multi pump controller
  • No external power supply required (24V AC/DC output of the VFD can be used)
  • Enclosure IP55 for panel or wall mounting
  • Suitable for combination with all standard frequency converters.
  • No limitation of the power range
  • HYDROVAR™ controlled variable speed drive for any supply voltage range possible.

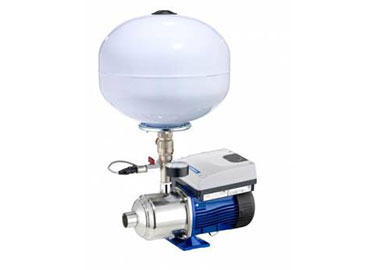

HYDROVAR™ Watercooled for low power boosting systems.

  • The HYDROVAR™ Watercooled variable speed drive will be supplied along with a pump and will protect the unit from dry running, overheating, short circuit and over-current and due to the soft start/stop operation protect the system from water hammer.
  • The HYDROVAR™ Watercooled is an important part of the HYDROVAR™ product family to complete the product portfolio on the low power end and continue to offer its users a reliable variable speed drive solution.

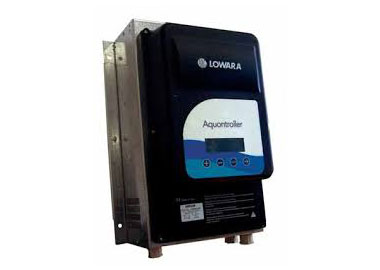

Aquontroller 230 VAC drive for single phase motors. systems.

  • The Aquontroller is specially designed for maintaining constant pressure independent of flow for maximum comfort. Energy savings are the result of the precise speed control.
  • Top quality components guarantee high reliability and a trouble-free life. The inverter has inbuilt protection against various and electrical faults.
  • Smooth operation and soft starting ensure silent running and an extended pump life. With pipe or wall mounted versions, the quick set up means easy installation

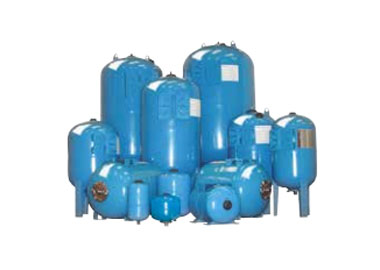

Pressure Vessels

  • Sizes to 5000 litre
  • Horizontal and vertical
  • Pressure to 10bar
  • Temperature to 99°C
  • Products available with WRc approved materials

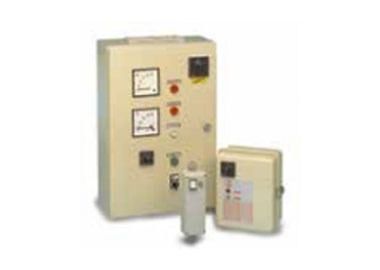

Control Boxes

  • A range of control boxes suitable for use with both submersible and surface pumps

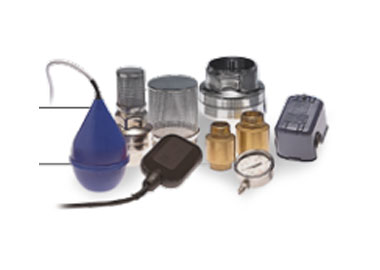

Vessels's Accessories

  • Pressure switches , Pressure gauges , 5 way connector , Flexible connector , Genyo , Float switches
  • Flow switches , Direct on line starter ,
  • Non return valves, strainers and hosetails.
  • Water softners , Filters , Dosing Pumps

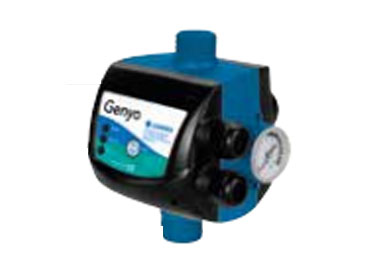

Genyo

  • Two models: Genyo 8A and Genyo 16A
  • Maximum current 16 A
  • Maximum pressure 10 bar
  • IP 65 protection
  • Delivery up to 170 l/min (10 m3/h)
  • Maximum liquid temperature 60°C
